安装程序问题！急！急！急！急！

技术010

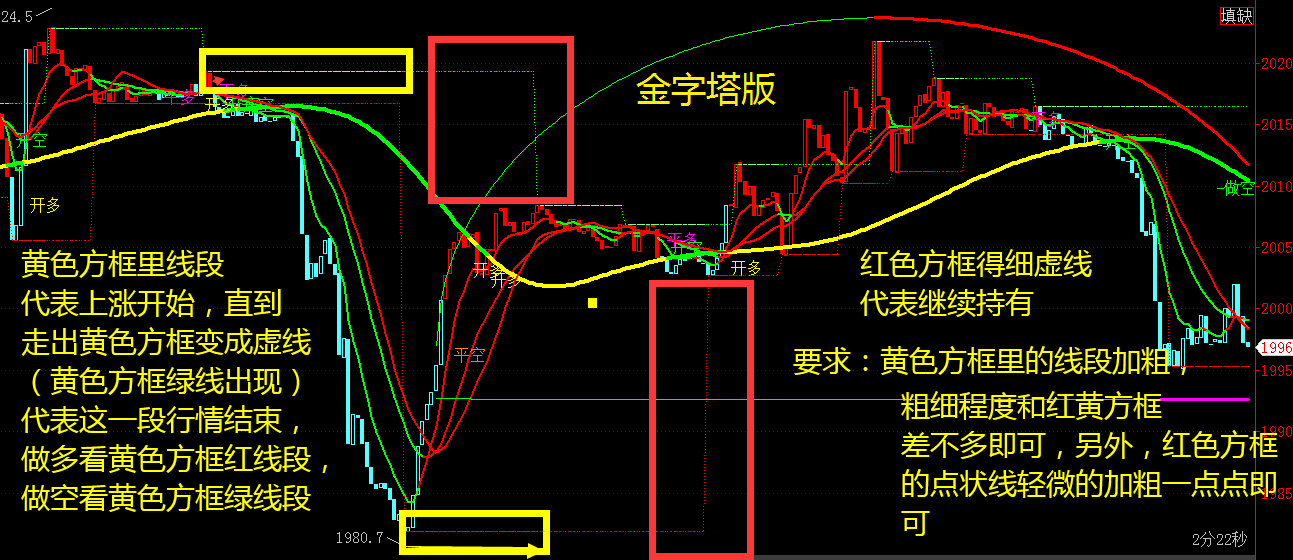

具体是哪个指标或画线要实现什么效果你，单看你的截图我们也没法判断你的需求的，请详细在金字塔的截图上说明下。

有花无果

源码：

S:=2;
TY:=C;
A1:=REF(TY,10)=HHV(TY,2*10+1);
VB1:=FILTER(A1,10);
C1:=BACKSET(VB1,10+1);
HD:=FILTER(C1,10);
A2:=REF(TY,10)=LLV(TY,2*10+1);
VB2:=FILTER(A2,10);
C2:=BACKSET(VB2,10+1);
LD:=FILTER(C2,10);
AAD:=REF(C,BARSLAST(HD));
BA:=REF(C,BARSLAST(LD));
T1:=BARSLAST(HD)<BARSLAST(LD) AND NOT(HD) ;
T2:=BARSLAST(HD)>BARSLAST(LD) AND NOT(LD);
A3:=LLV(LOW,1);
A4:=LLV(LOW,5);
A5:=LLV(LOW,8);
A6:=HHV(H,21);
A7:=LLV(LOW,21),COLORRED;
A8:=(A6+A7)/2;
高点压力:IF(T1,AAD,AAD),COLORGREEN,POINTDOT,LINETHICK3;
低点支撑:IF(T2,BA,BA),COLORRED,POINTDOT,LINETHICK3;

TT:=REFX(NOT(T1),1)&&T1;
TTT:=REFX(NOT(T2),1)&&T2;

DRAWLINE(TT,AAD+S*MINPRICE,1,AAD-S*MINPRICE,COLORYELLOW),LINETHICK2;
DRAWLINE3(TT,AAD+S*MINPRICE,BARSLAST(CROSS(T1,0.5)),1,AAD-S*MINPRICE,BARSLAST(CROSS(T1,0.5)),0),COLORYELLOW,LINETHICK2;
DRAWSL(TT,AAD+S*MINPRICE,0,-BARSLAST(CROSS(T1,0.5)),0,COLORYELLOW),LINETHICK2;
DRAWSL(TT,AAD-S*MINPRICE,0,-BARSLAST(CROSS(T1,0.5)),0,COLORYELLOW),LINETHICK2;


DRAWLINE(TTT,BA+S*MINPRICE,1,BA-S*MINPRICE,COLORRED),LINETHICK2;
DRAWLINE3(TTT,BA+S*MINPRICE,BARSLAST(CROSS(T2,0.5)),1,BA-S*MINPRICE,BARSLAST(CROSS(T2,0.5)),0),COLORRED,LINETHICK2;
DRAWSL(TTT,BA+S*MINPRICE,0,-BARSLAST(CROSS(T2,0.5)),0,COLORRED),LINETHICK2;
DRAWSL(TTT,BA-S*MINPRICE,0,-BARSLAST(CROSS(T2,0.5)),0,COLORRED),LINETHICK2;

FILLRGN(T1,AAD+S*MINPRICE,AAD-S*MINPRICE,RGB(255,255,166));
FILLRGN(T2,BA+S*MINPRICE,BA-S*MINPRICE,RGB(255,106,106));

技术006

抱歉，目前达不到你这类看盘的需求。

有花无果

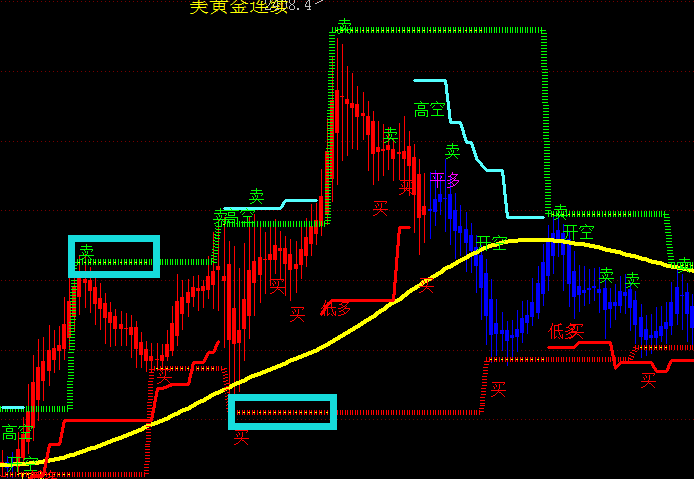

我已经去掉了长长的线，看看有没有办法把方框里的黄颜色加粗的可能？


补充内容 (2023-4-24 11:28):
S：=2;
TY:=C;
A1:=REF(TY,10)=HHV(TY,2*10+1); VB1:=FILTER(A1,10); C1:=BACKSET(VB1,10+1); HD:=FILTER(C1,10);
A2:=REF(TY,10)=LLV(TY,2*10+1); VB2:=FILTER(A2,10); C2:=BACKSET(VB2,10+1); LD:=FILTER(C2,10);
AAD:=REF(C,BARSLAST(HD)); BA:=REF(C,BARSLAST(LD));
T1:=BARSLAST(HD)<BARSLAST(LD) AND NOT(HD) ;
T2:=BARSLAST(HD)>BARSLAST(LD) AND NOT(LD);
A3:=LLV(LOW,1);
A4:=LLV(LOW,5);
A5:=LLV(LOW,8);
A6:=HHV(H,21);
A7:=LLV(LOW,21),COLORRED;
A8:=(A6+A7)/2;
高点压力:IF(T1,AAD,AAD),COLORGREEN,POINTDOT,LINETHICK6;
STICKLINE(T1,AAD,AAD,10,0),COLORYELLOW，LINETHICK6;
低点支撑:IF(T2,BA,BA),COLORRED,POINTDOT,LINETHICK5;
STICKLINE(T2,BA,BA,10,0),COLORYELLOW,LINETHICK6;


技术010

如下，通过调整画柱线的高度来实现。
S：=2;
TY:=C;
A1:=REF(TY,10)=HHV(TY,2*10+1); VB1:=FILTER(A1,10); C1:=BACKSET(VB1,10+1); HD:=FILTER(C1,10);
A2:=REF(TY,10)=LLV(TY,2*10+1); VB2:=FILTER(A2,10); C2:=BACKSET(VB2,10+1); LD:=FILTER(C2,10);
AAD:=REF(C,BARSLAST(HD)); BA:=REF(C,BARSLAST(LD));
T1:BARSLAST(HD)<BARSLAST(LD) AND NOT(HD) ;
T2:BARSLAST(HD)>BARSLAST(LD) AND NOT(LD);
A3:=LLV(LOW,1);
A4:=LLV(LOW,5);
A5:=LLV(LOW,8);
A6:=HHV(H,21);
A7:=LLV(LOW,21),COLORRED;
A8:=(A6+A7)/2;
高点压力:IF(T1,AAD,AAD),COLORGREEN,POINTDOT,LINETHICK6;
STICKLINE(T1,AAD,AAD+0.2*mindiff,10,0),COLORYELLOW，LINETHICK6;
低点支撑:IF(T2,BA,BA),COLORRED,POINTDOT,LINETHICK5;
STICKLINE(T2,BA,BA+0.2*mindiff,10,0),COLORYELLOW,LINETHICK6;

有花无果

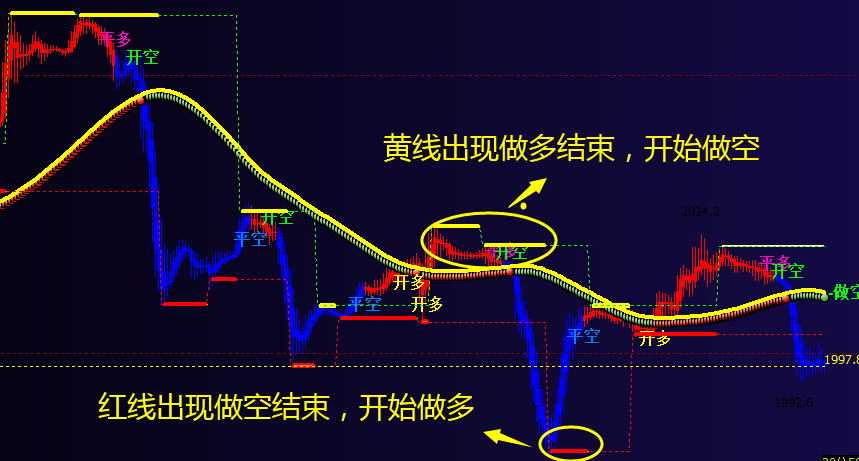

加入下面得公式解决了黄线变粗的问题，给看看是否有滞后性？
DRAWLINE(TT,AAD+S*MINDIFF    ,1,AAD-S*MINDIFF  ,COLORYELLOW),LINETHICK2;
DRAWLINE(TT,AAD+S*MINDIFF  ,BARSLAST(CROSS(T1,0.5)),1,AAD-S*MINDIFF  ,BARSLAST(CROSS(T1,0.5)),0),COLORYELLOW,LINETHICK2;
DRAWLINE(TTT,BA+S*MINDIFF  ,1,BA-S*MINDIFF  ,COLORRED),LINETHICK2;
DRAWLINE(TTT,BA+S*MINDIFF  ,BARSLAST(CROSS(T2,0.5)),1,BA-S*MINDIFF  ,BARSLAST(CROSS(T2,0.5)),0),COLORRED,LINETHICK2;
FILLRGN(T1,AAD+S*MINDIFF  ,AAD-S*MINDIFF  ,RGB(255,255,166));
FILLRGN(T2,BA+S*MINDIFF  ,BA-S*MINDIFF  ,RGB(255,106,106));

补充内容 (2023-4-24 15:31):
3分钟看着可以，其他周期有滞后性，看能否解决？

技术010

这个没有滞后性啊，绘图是根据你的TT、TTT、T1、T2条件来绘制的,只要指标条件正常运算，就不会有滞后啊。

有花无果

指标能通过,无法显示,老师给看看



VAR1:=EMA(EMA(CLOSE,7),7);
控盘2:=(VAR1-REF(VAR1,1))/REF(VAR1,1)*1000;
控盘1:=IF(DATACOUNT-4<=0,0,控盘2);

A:00,COLOR000000;
B:100,COLOR000000;
G:=53;
D:=58;
E:=48;
F:=43;
J:=40;
I:=61;
MAH3:=MA(HIGH,30);
MAH2:=IF(DATACOUNT-4<=0,0,MAH3);
MAL3:=MA(LOW,30);
MAL2:=IF(DATACOUNT-4<=0,0,MAL3);

{减仓信号}
RSV:=(CLOSE-LLV(LOW,9))/(HHV(HIGH,9)-LLV(LOW,9))*100;
K1:=SMA(RSV,3,1);
D1:=SMA(K1,3,1);
DRAWBMP(CROSS(K1,D1) AND 控盘1<0 AND C<MAL2 AND K1<30,25,'KJC'),ALIGN1,VALIGN2;
DRAWBMP(CROSS(D1,K1) AND 控盘1>0  AND C>MAH2 AND K1>70,100,'DJC'),ALIGN1,VALIGN2;
SAR3:=SAR(5,2,4);
SAR4:=IF(DATACOUNT-6=0,0,SAR3);
SAR2:=SAR(7,2,4);
MAH1:=MA(HIGH,30);
MAH:=MA(HIGH,30);
MAL1:=MA(LOW,30);
MAL:=MA(LOW,30);
DRAWBMP(CROSS(K1,D1) AND C<SAR4 AND C<MAL AND K1<30,25,'KJC'),ALIGN1,VALIGN2;
DRAWBMP(CROSS(D1,K1) AND C>SAR4 AND SAR4>0 AND C>MAH AND K1>70,100,'DJC'),ALIGN1,VALIGN2;
DRAWBMP(控盘1>0 AND C<MAH2,60,'DR');
DRAWBMP(控盘1>0 AND C>=MAH2,80,'DQ');
DRAWBMP(控盘1<0 AND C>MAL2,45,'KR');
DRAWBMP(控盘1<0 AND C<MAL2,35,'KQ');
DRAWBMP(控盘1>0 AND RANGE(C,MAL2,MAH2),60,'DR');
DRAWBMP(控盘1<0 AND RANGE(C,MAL2,MAH2),45,'KR');

DRAWBMP(C>SAR2 AND SAR2>0 AND C<MAL1,60,'DR');
DRAWBMP(C>SAR2 AND C>MAH1 AND SAR2>0,80,'DQ');
DRAWBMP(C<SAR2 AND C>MAH1,45,'KR');
DRAWBMP(C<SAR2 AND C<MAL1,35,'KQ');

DRAWBMP(C>=SAR2 AND SAR2>0 AND RANGE(C,MAL1,MAH1),60,'DR');
DRAWBMP(C<=SAR2 AND RANGE(C,MAL1,MAH1),45,'KR');

技术010

DRAWBMP这个函数是画位图函数，你先看下这个函数在金字塔中的用法，你的这些DR,KR是BMP文件吗，这个文件是要放在软件安装目录下的document文件夹中的。

有花无果

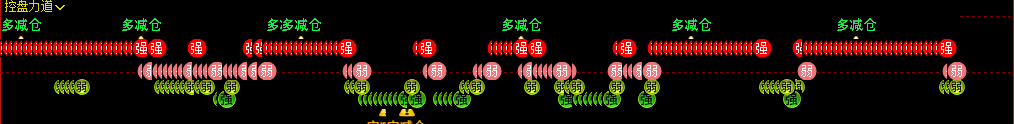

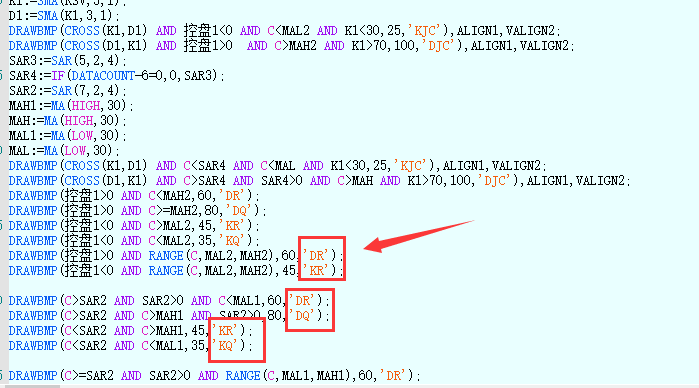

DRAWBMP确实是画位法,这整套代码是文化原码,如图!那我该如何操作?
