指标修改

有花无果

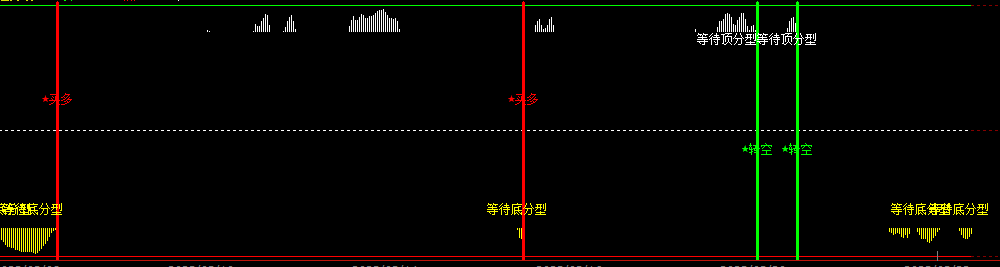

      修改（见图）原图是副图修改成主图，如无法修改主图，副图也行，将线缩短两三厘米左右，能在主图下方显示出来就好，


H1:=MAX(GETPRICE('YCLOSE'),GETPRICE('HIGH'));
L1:=MIN(GETPRICE('YCLOSE'),GETPRICE('LOW'));
P1:=H1-L1;
阻力:=L1+P1*7/8,COLORGREEN;
支撑:=L1+P1*0.5/8,COLORRED;
中线:=(阻力+支撑)/2,COLORWHITE,POINTDOT;
V11:=3*SMA((C-LLV(L,55))/(HHV(H,55)-LLV(L,55))*100,5,1)-2*SMA(SMA((C-LLV(L,55))/(HHV(H,55)-LLV(L,55))*100,5,1),3,1);
趋势线:=EMA(V11,3),LINETHICK2,COLORMAGENTA;
V12:=(趋势线-REF(趋势线,1))/REF(趋势线,1)*100;
STICKLINE(趋势线<11,趋势线,11,5,0),COLORYELLOW;
AA:=(趋势线<11) AND FILTER((趋势线<=11),15) AND C<中线;
BB0:=REF(趋势线,1)<11 AND CROSS(趋势线,11) AND C<中线;
BB1:=REF(趋势线,1)<11 AND REF(趋势线,1)>6 AND CROSS(趋势线,11);
BB2:=REF(趋势线,1)<6 AND REF(趋势线,1)>3 AND CROSS(趋势线,6);
BB3:=REF(趋势线,1)<3 AND REF(趋势线,1)>1 AND CROSS(趋势线,3);
BB4:=REF(趋势线,1)<1 AND REF(趋势线,1)>0 AND CROSS(趋势线,1);
BB5:=REF(趋势线,1)<0 AND CROSS(趋势线,0);
BB:=BB1=1 OR BB2=1 OR BB3=1 OR BB4=1 OR BB5=1;
VERTLINE(BB0,COLORRED),LINETHICK3;

DRAWTEXT(BB0,60,'★买多'),COLORRED;
DRAWTEXT(AA,16,'等待底分型'),COLORYELLOW;
STICKLINE(趋势线>89,趋势线,89,5,0),COLORWHITE;
CC:=(趋势线>89) AND FILTER((趋势线>89),15) AND C>中线;
DD0:=REF(趋势线,1)>89 AND CROSS(89,趋势线) AND C>中线;
DD1:=REF(趋势线,1)>89 AND REF(趋势线,1)<94 AND CROSS(89,趋势线);
DD2:=REF(趋势线,1)>94 AND REF(趋势线,1)<97 AND CROSS(94,趋势线);
DD3:=REF(趋势线,1)>97 AND REF(趋势线,1)>99 AND CROSS(97,趋势线);
DD4:=REF(趋势线,1)>99 AND REF(趋势线,1)<100 AND CROSS(99,趋势线);
DD5:=REF(趋势线,1)>100 AND CROSS(100,趋势线);
DD:=DD1=1 OR DD2=1 OR DD3=1 OR DD4=1 OR DD5=1;
VERTLINE(DD0,COLORGREEN),LINETHICK3;
DRAWTEXT(DD0,40,'★转空'),COLORGREEN;
DRAWTEXT (CC,84,'等待顶分型'),COLORWHITE;
顶:100,COLORGREEN;
底:0,COLORRED;
中:50,POINTDOT,COLORWHITE;

有花无果

照片上传不了

补充内容 (2023-3-22 15:47):
可以上传了

补充内容 (2023-3-22 15:49):
看看能不能把线缩短修改成主图，或者放过主图下面也可以，

技术006

把哪个线缩短？

有花无果

技术006 发表于 2023-3-22 16:13
把哪个线缩短？

红线（买多）绿线（转空）

技术006

只能这样

[PEL] 复制代码

?

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37

H1:=MAX(PRVSETTLEMENT,CALLSTOCK('',vtHIGH,6,0)); L1:=MIN(PRVSETTLEMENT,CALLSTOCK('',vtLOW,6,0)); P1:=H1-L1; 阻力:=L1+P1*7/8,COLORGREEN; 支撑:=L1+P1*0.5/8,COLORRED; 中线:=(阻力+支撑)/2,COLORWHITE,POINTDOT; V11:=3*SMA((C-LLV(L,55))/(HHV(H,55)-LLV(L,55))*100,5,1)-2*SMA(SMA((C-LLV(L,55))/(HHV(H,55)-LLV(L,55))*100,5,1),3,1); 趋势线:=EMA(V11,3),LINETHICK2,COLORMAGENTA; V12:=(趋势线-REF(趋势线,1))/REF(趋势线,1)*100; STICKLINE(趋势线<11,趋势线,11,5,0),COLORYELLOW; AA:=(趋势线<11) AND FILTER((趋势线<=11),15) AND C<中线; BB0:=REF(趋势线,1)<11 AND CROSS(趋势线,11) AND C<中线; BB1:=REF(趋势线,1)<11 AND REF(趋势线,1)>6 AND CROSS(趋势线,11); BB2:=REF(趋势线,1)<6 AND REF(趋势线,1)>3 AND CROSS(趋势线,6); BB3:=REF(趋势线,1)<3 AND REF(趋势线,1)>1 AND CROSS(趋势线,3); BB4:=REF(趋势线,1)<1 AND REF(趋势线,1)>0 AND CROSS(趋势线,1); BB5:=REF(趋势线,1)<0 AND CROSS(趋势线,0); BB:=BB1=1 OR BB2=1 OR BB3=1 OR BB4=1 OR BB5=1; VERTLINE(BB0,0,0,COLORRED);   DRAWTEXT(BB0,60,'★买多',COLORRED,0); DRAWTEXT(AA,16,'等待底分型',COLORYELLOW,0); STICKLINE(趋势线>89,趋势线,89,5,0),COLORWHITE; CC:=(趋势线>89) AND FILTER((趋势线>89),15) AND C>中线; DD0:=REF(趋势线,1)>89 AND CROSS(89,趋势线) AND C>中线; DD1:=REF(趋势线,1)>89 AND REF(趋势线,1)<94 AND CROSS(89,趋势线); DD2:=REF(趋势线,1)>94 AND REF(趋势线,1)<97 AND CROSS(94,趋势线); DD3:=REF(趋势线,1)>97 AND REF(趋势线,1)>99 AND CROSS(97,趋势线); DD4:=REF(趋势线,1)>99 AND REF(趋势线,1)<100 AND CROSS(99,趋势线); DD5:=REF(趋势线,1)>100 AND CROSS(100,趋势线); DD:=DD1=1 OR DD2=1 OR DD3=1 OR DD4=1 OR DD5=1; VERTLINE(DD0,0,0,COLORGREEN),LINETHICK3; DRAWTEXT(DD0,40,'★转空',COLORGREEN,0); DRAWTEXT (CC,84,'等待顶分型',COLORWHITE,0); 顶:100,COLORGREEN; 底:0,COLORRED; 中:50,POINTDOT,COLORWHITE;

技术009

上面指标在附图下运行

有花无果

昨天的指标运行很完美！双趋势通道线修改成金字塔。谢谢！


CURRBARSCOUNT:=DATACOUNT-BARPOS+1;
通道N:=1;
通道:=IF(通道N,1,NULL);

N:=33;
UR:=15;//；
LR:=15;//；
TC1:=IF(H=HHV(H,8*UR),H,NULL);
TC2:=REFX1(BARSLAST(TC1=H),10000)+1;
UPPER:=REFX1(IF(TC2=1,H,REF(H,TC2-1)),10000);
BC1:=IF(L=LLV(L,8*LR),L,NULL);
BC2:=REFX1(BARSLAST(BC1=L),10000)+1;
LOWER:=REFX1(IF(BC2=1,L,REF(L,BC2-1)),10000);

LP:=CURRBARSCOUNT<=BC2 AND L=LOWER;//{低点定位}
HP:=CURRBARSCOUNT<=TC2 AND H=UPPER;//{高点定位}

//STICKLINE(通道*IF(BC2>TC2,HP,LP),通道*LOWER,通道*UPPER,0,0),COLOR628962;//{右侧竖线}
//STICKLINE(通道*IF(BC2>TC2,LP,HP),通道*LOWER,通道*UPPER,0,0),COLOR628962;//{左侧竖线}
NOD:=(IF(TC2>BC2,TC2,BC2)-IF(TC2>BC2,BC2,TC2));//{用时}
LR1:=FORCAST(C,NOD+1);
NP:=通道*IF(CURRBARSCOUNT<=MAX(BC2,TC2),    REFX1(IF(MIN(TC2,BC2)=1,LR1,REF(LR1,MIN(TC2,BC2)-1)),10000),NULL),POINTDOT,NOTEXT, COLORFFFFFF;//{近点}//上横线；
LR2:=SLOPE(C,NOD+1);
LR3:=REFX1(IF(MIN(TC2,BC2)=1,LR2,REF(LR2,MIN(TC2,BC2)-1)),10000);
FP:=通道*(NP-LR3*(NOD)),POINTDOT,NOTEXT, COLORFFFFFF;//{远点}//下横线；
EQU:=通道*((NP+FP)/2),POINTDOT,NOTEXT, COLORFFFFFF;//{中点}//中横线；

AD:=ABS(NP-FP);//{高差}/
DBL:=BARSLAST(NOT(ISNULL(BC1)) )+1;
DBH:=BARSLAST(NOT(ISNULL(TC1)) )+1;
BSP:=IF(BC2>TC2,DBL,DBH)-1;
LRL:=IF(NP>FP,FP+AD/NOD*BSP,FP-AD/NOD*BSP);
AT1:=IF(BETWEEN(CURRBARSCOUNT,BC2,TC2) AND H>LRL,H,LRL);
AT2:=HHV(AT1-LRL,MAX(BC2,TC2));
AT3:=REFX1(BARSLAST(AT1-LRL=AT2),10000);
AT4:=REFX1(IF(AT3=0,H,REF(H,AT3)),10000);
AT5:=REFX1(IF(AT3=0,AT1-LRL,REF(AT1-LRL,AT3)),10000);
ATL:=LRL+AT5;
UT1:=IF(BETWEEN(CURRBARSCOUNT,BC2,TC2) AND L<LRL,L,LRL);
UT2:=HHV(LRL-UT1,MAX(BC2,TC2));
UT3:=REFX1(BARSLAST(LRL-UT1=UT2),10000);
UT4:=REFX1(IF(UT3=0,H,REF(H,UT3)),10000);
UT5:=REFX1(IF(UT3=0,LRL-UT1,REF(LRL-UT1,UT3)),10000);
UTL:=LRL-UT5;
RH:=IF(CURRBARSCOUNT>=MIN(BC2,TC2)-10,ATL,REFX1(REF(ATL,MIN(BC2,TC2)-11),10000));
RL:=IF(CURRBARSCOUNT>=MIN(BC2,TC2)-10,UTL,REFX1(REF(UTL,MIN(BC2,TC2)-11),10000));

HH:=通道*IF(NP>FP ,IF(ATL<=RH,ATL,NULL),IF(ATL>=RL,ATL,NULL)),NOTEXT, COLORYELLOW,LINETHICK3;//{上轨画线}
LL:=通道*IF(NP>FP,IF(UTL<=RH,UTL,NULL),IF(UTL>=RL,UTL,NULL)),NOTEXT, COLORFFFFFF,LINETHICK3;//{下轨画线};
IF(ATL<REFX1(REF(ATL,MIN(BC2,TC2)-11),10000),HH,NULL),COLORRED,LINETHICK3;
IF(ATL>REFX1(REF(ATL,MIN(BC2,TC2)-11),10000),HH,NULL),COLORGREEN,LINETHICK3;

IF(ATL<REFX1(REF(ATL,MIN(BC2,TC2)-11),10000),LL,NULL),COLORRED,LINETHICK3;
IF(UTL>REFX1(REF(UTL,MIN(BC2,TC2)-11),10000),LL,NULL),COLORGREEN,LINETHICK3;

//STICKLINE1( NP>FP,  ATL ,UTL,4,0         ),RGB(38,38,0);
//STICKLINE1( NP<FP,  ATL ,UTL,4,0         ),RGB(0,38,38);
//DRAWKLINE1(H,O,L,C);
